SPECIFICATIONS

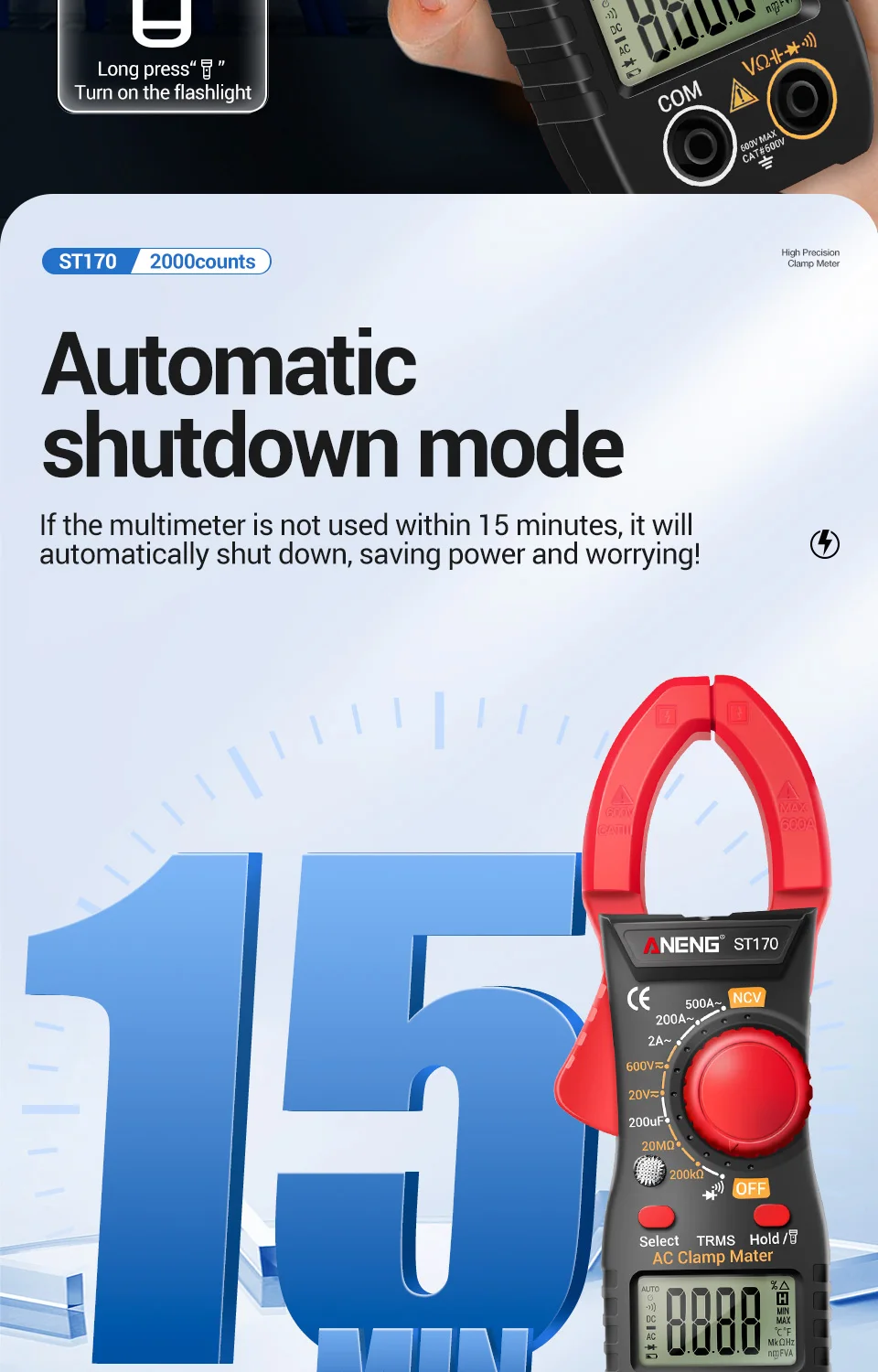

Automatic shut-down: Yes

Battery Type: AAA*2

Capacitance: Yes

Certification: CE,None

DIY Supplies: ELECTRICAL

Data Retention: Yes

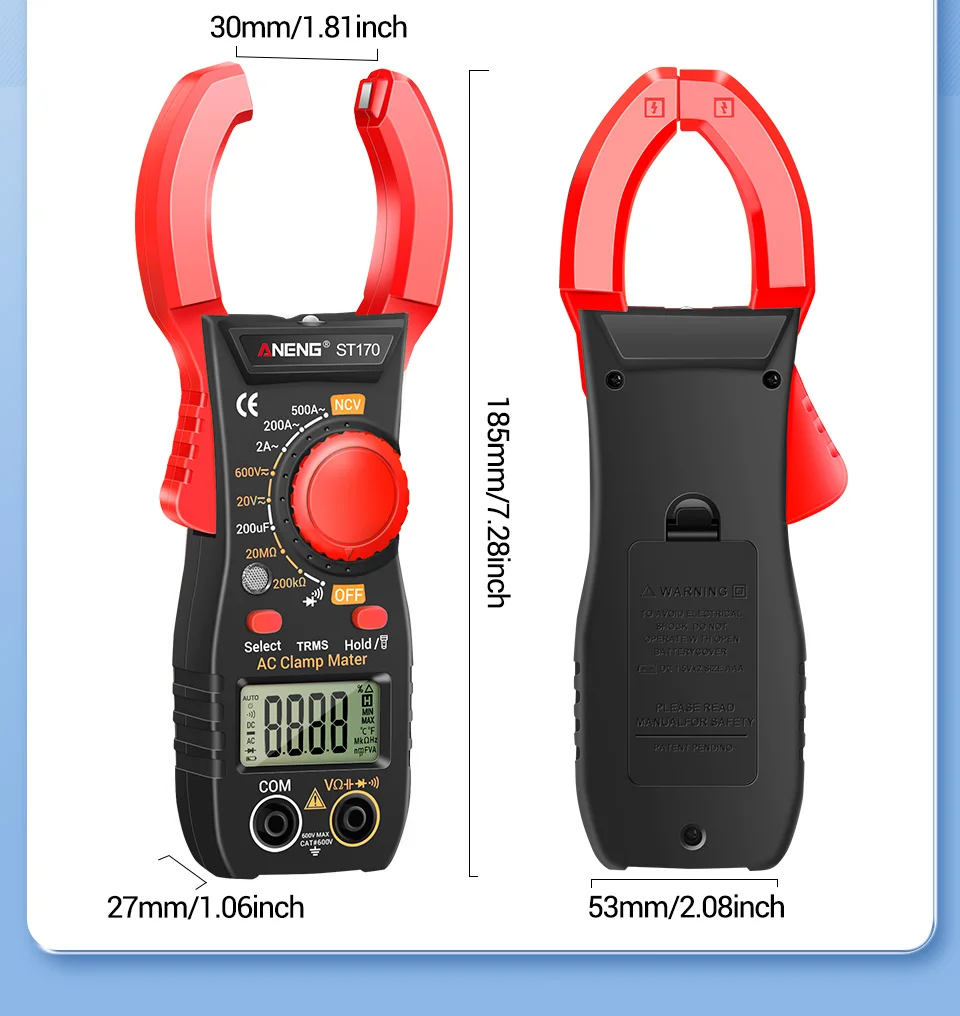

Dimensions: 185*50*25MM

Diode: Yes

Display: 1999 Counts

Display Type: Digital Only

Flashlight: Yes

High-concerned Chemical: None

Measuring Capacitance Range: 200uF

Measuring Current Range: AC Current

Measuring Resistance Range: 200k/20M

Measuring Voltage Range: AC Voltage

Model Number: ANENG ST170 Digital Professional Clamp Meter

NCV: Yes

Operating Temperature: 0~40

Resistance: Yes

Weight: 131G

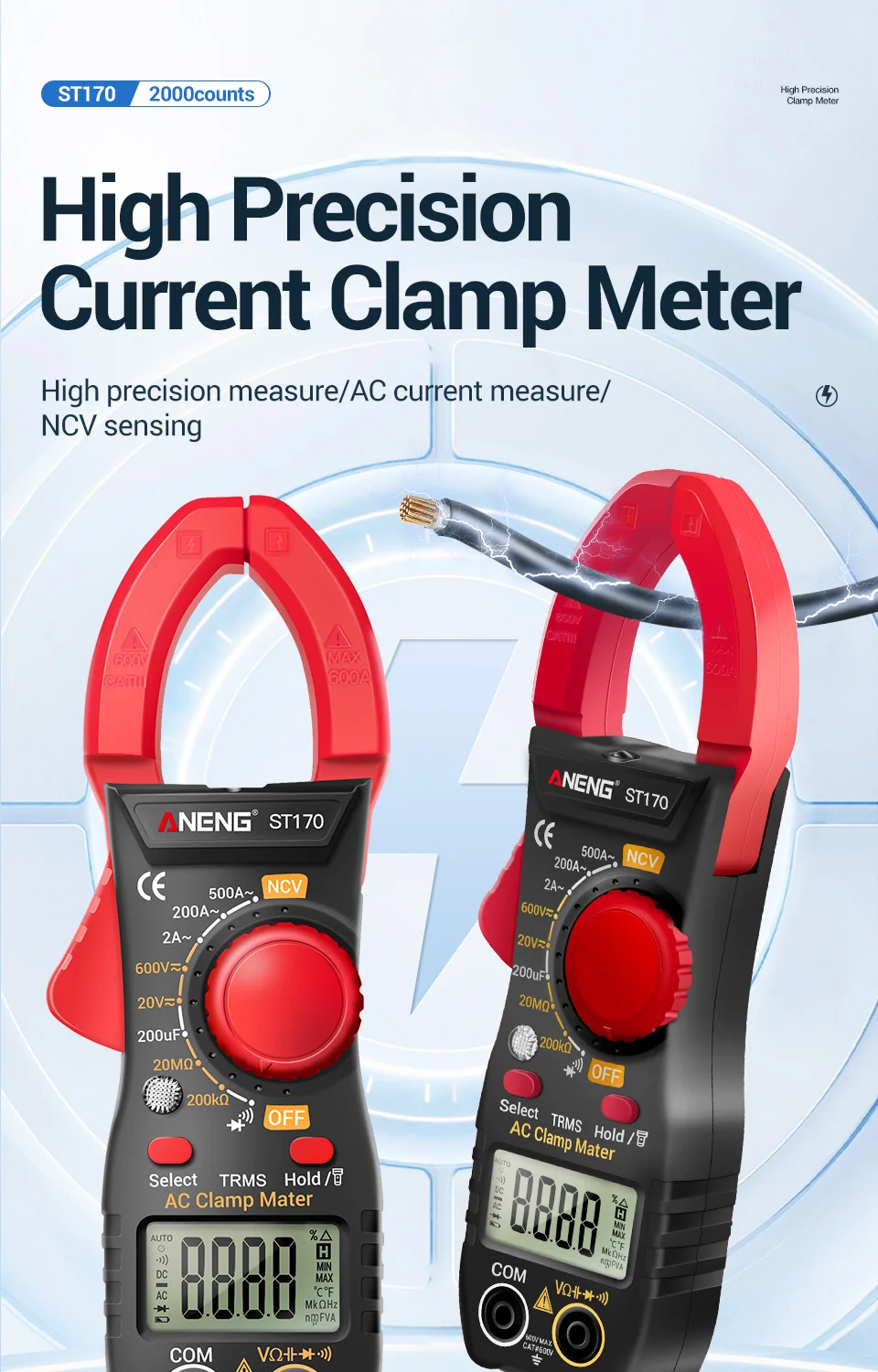

ANENG ST170 Multimeter Digital Clamp Meter Tester 1999 Counts AC/DC Voltage voltmeter Hz Capacitance NCV Ohm Diode Tester Tools

A. Introduction:

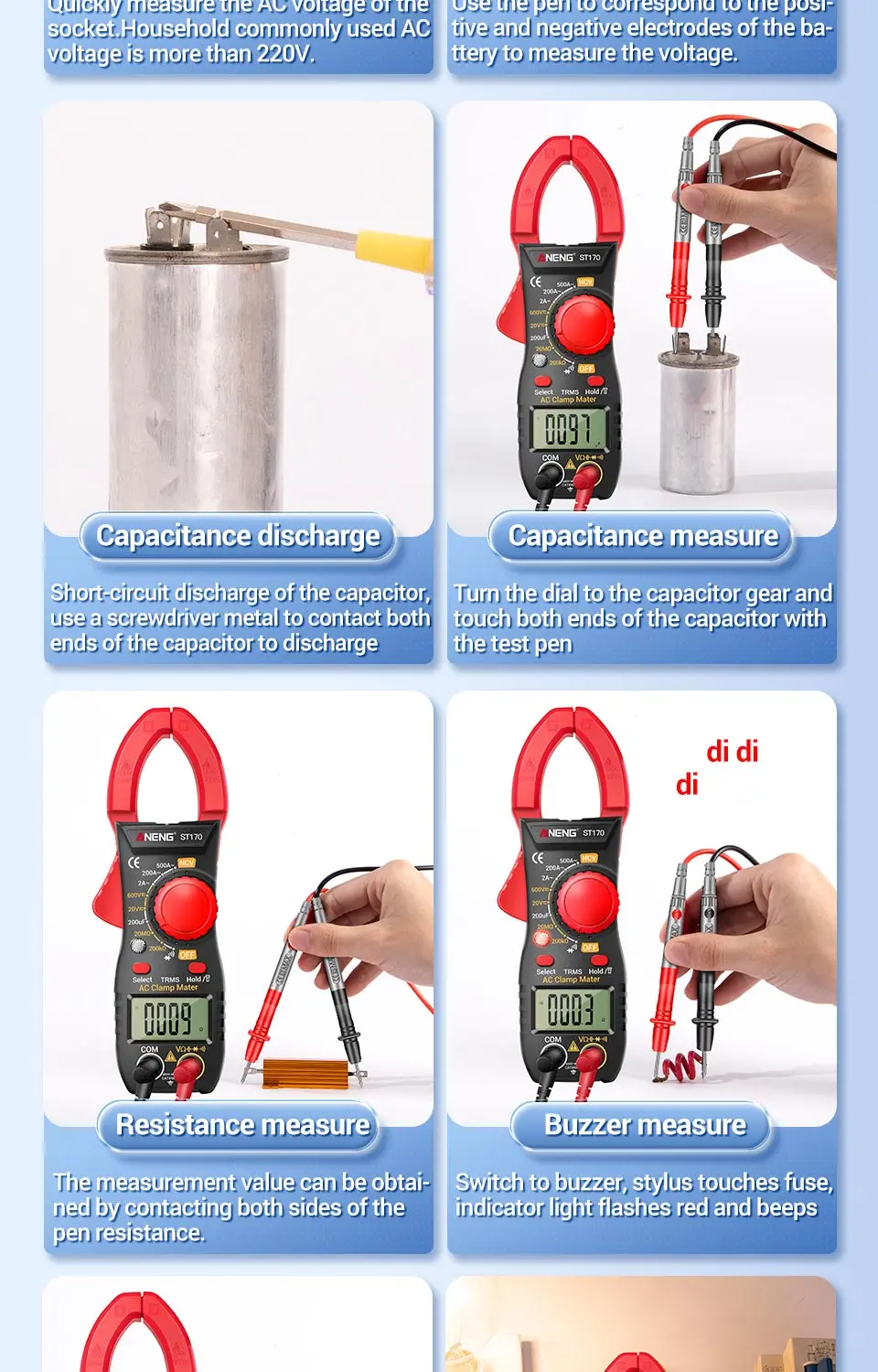

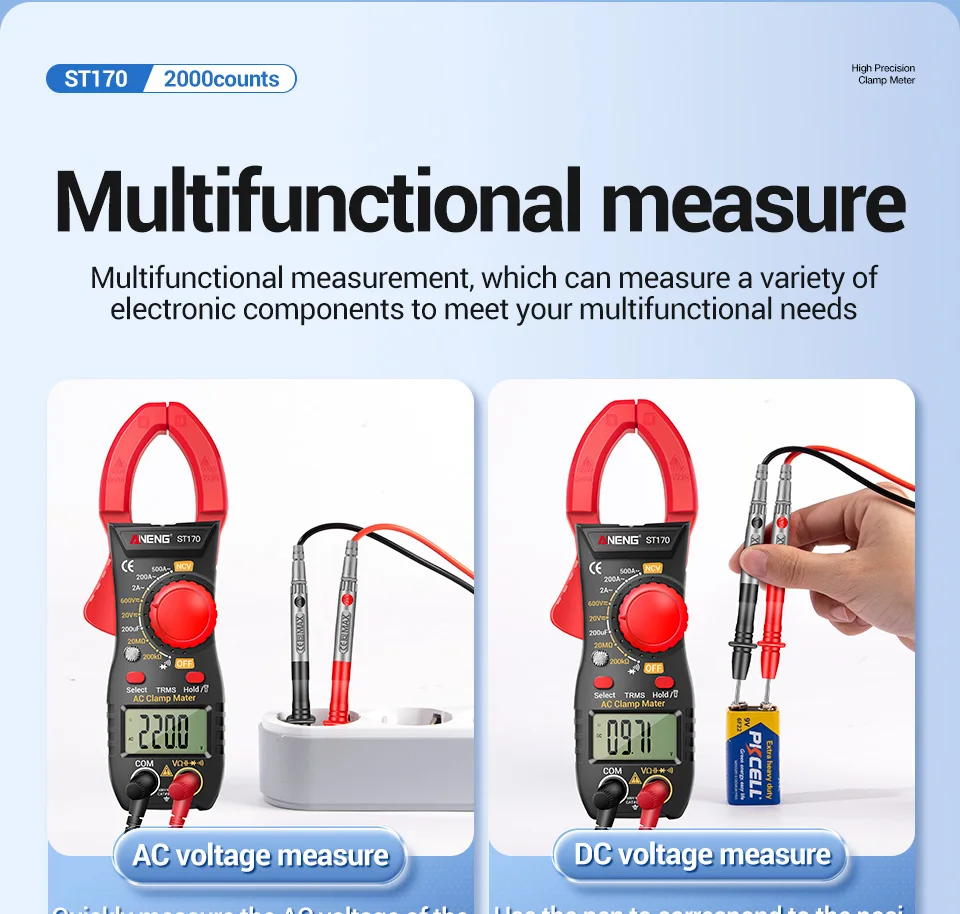

This instrument performs AC/DC voltage, AC current, Resistance, Diode, and Non-Contact ACV detect (NCV) as well as Capacitance, etc.

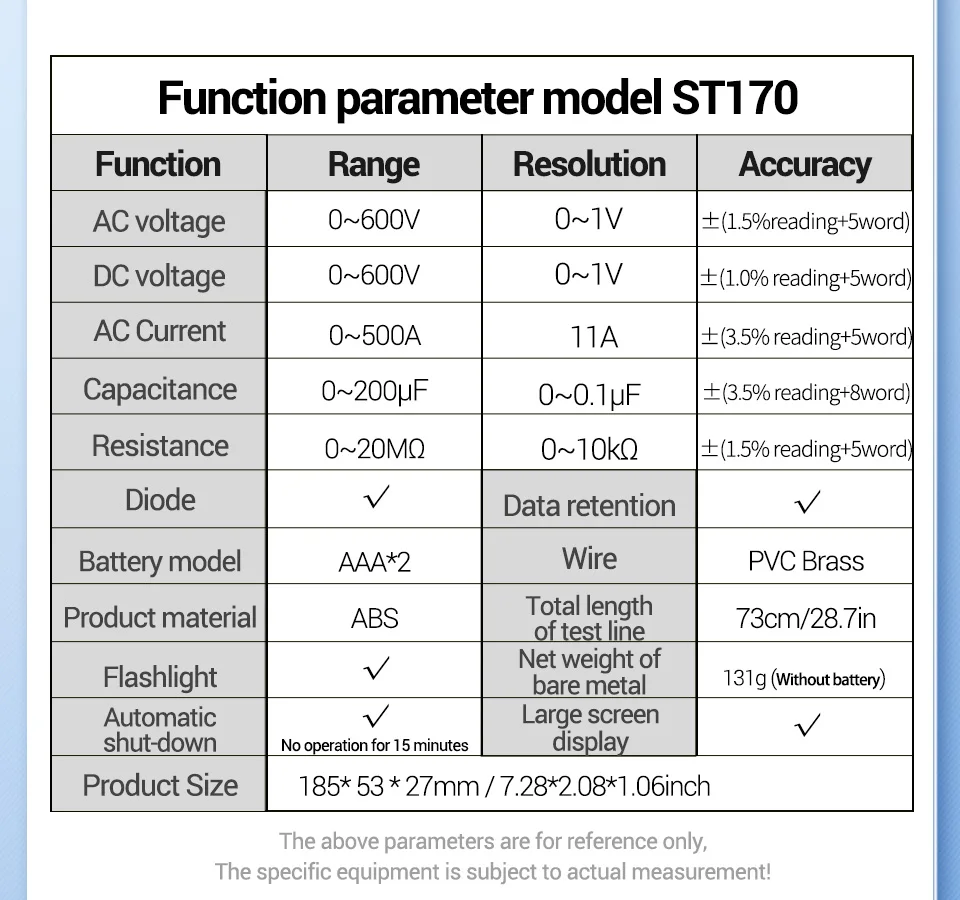

B. Specification:

Model	ST170	Display	1999 Counts

	Range	Accuracy
AC Voltage	20V/600V	±(1.5%+5)
DC Voltage	20V/600V	±(1.0%+5)
AC Current	2A/200A	±(2.5%+3)
	500A	±(3.5%+5)
Resistance	200k  omh	±(1.0%+3)
	20M  omh	±(1.2%+5)
Capacitance	200uF	±(3%+10)

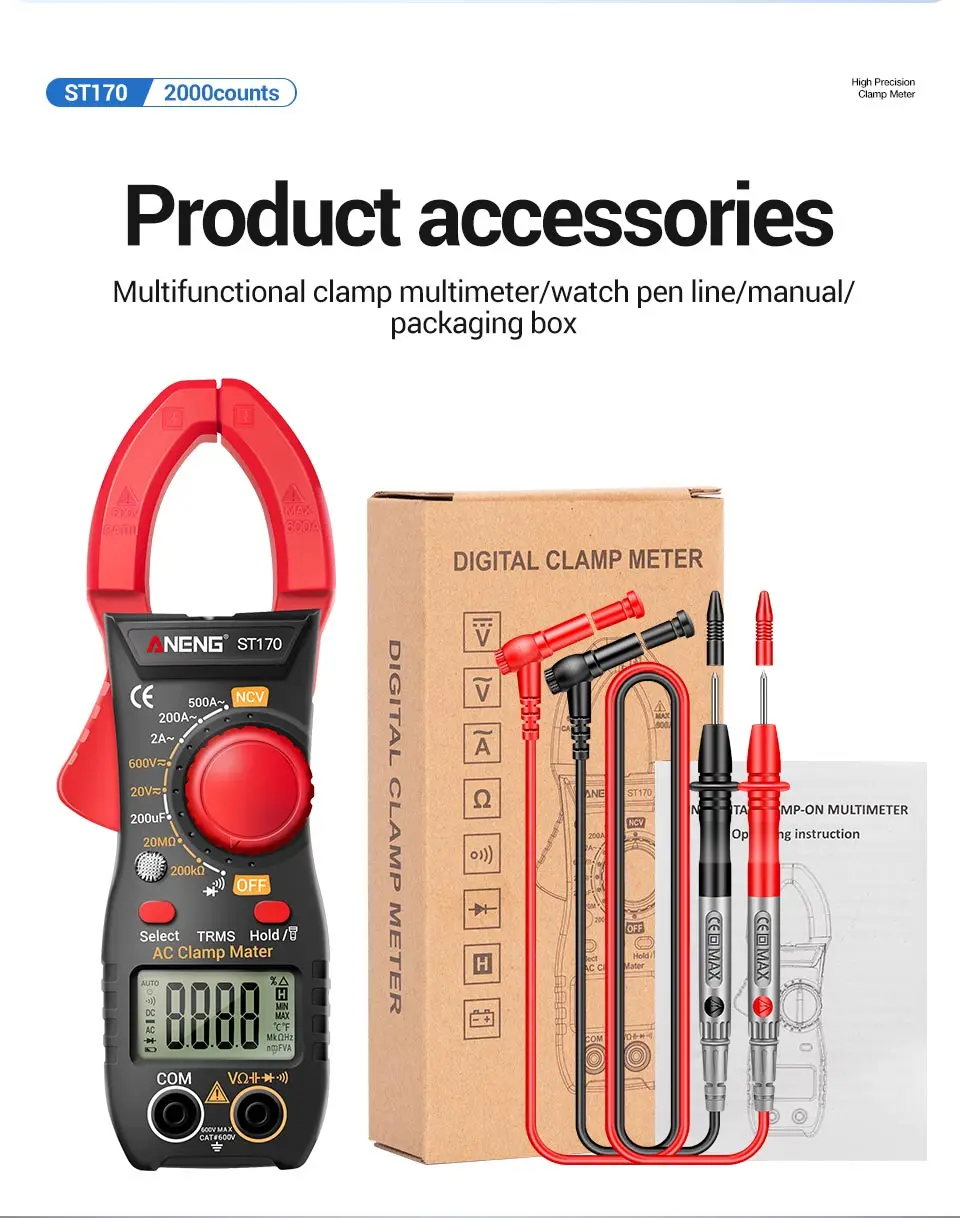

C.Package Include:
1*clamp meter (Battery Not included)
1*Test lead wire
1*Manual
